Thread Rolling Dies with Groove for Machine Screws

GXP Click here

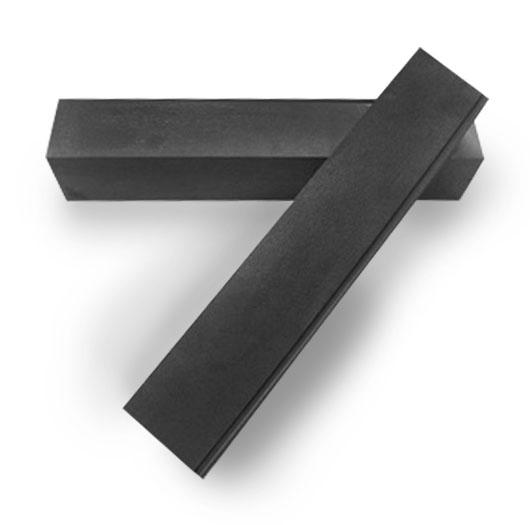

GXP supplies flat thread rolling dies for machine screws with groove requirements. Each matched set includes one stationary die and one moving die. The product page lists UNC, UNF, BSW and metric machine screw threads, with custom designs available for review.

Thread and groove specifications should be confirmed against the finished screw drawing before tooling approval.

Definition and Functions

These dies are forming tools used to produce external threads on machine screws with a specified groove design. Pressure between the die plates displaces the blank material to form the thread profile.

Main functions:

  • Form the required thread diameter, pitch and profile.
  • Control threaded length and the thread transition around groove areas.
  • Accommodate the specified groove geometry, subject to tooling review.
  • Match die dimensions to the thread rolling machine.

The website does not define the groove geometry or its intended function. Specify whether the groove is axial, circumferential or another profile. Simultaneous thread and groove forming requires engineering confirmation.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel for carbon steel used
DC-53 Cold-work tool steel for carbon steel used
SKH-9 High-speed tool steel for stainless steel used
M2 High-speed tool steel  for stainless steel used

Material selection should consider blank material, hardness, groove geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Please provide these details for technical review and quotation:

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Standard, pitch or TPI, tolerance class and threaded length
Groove specifications Type, quantity, location, direction, width, depth, profile and tolerances
Starting blank Material grade, hardness, diameter and whether grooves already exist
Machine details Machine manufacturer and model
Die dimensions Length, height and thickness of both dies, including mounting details
Drawings or samples Finished screw drawing and blank drawing; samples if available
Purchase requirements Drawing revision, quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are these dies used for?
They form external threads on machine screws with a specified groove configuration.

2. Which thread types are listed?
GXP lists UNC, UNF, BSW and metric machine screw threads. Provide the exact standard, size and tolerance requirements for review.

3. Can the threads and groove be formed in one operation?
This depends on groove geometry, blank condition and machine capability. Submit both blank and finished screw drawings for confirmation.

4. What is the groove’s function?
Its function depends on the screw design. Specify the intended application and acceptance requirements on the drawing.

5. Which materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Each set contains one stationary die and one moving die.

6. Can the dies fit my existing machine?
Provide the machine manufacturer, model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Inspect thread dimensions and profile, groove position, width, depth and shape. Check for thread distortion, burrs, laps and surface damage near groove edges.

Request a Quotation

Send GXP your finished screw drawing, groove specifications, blank details and machine information for technical review and quotation.
