Micro Screw Making Die
GXP Click here

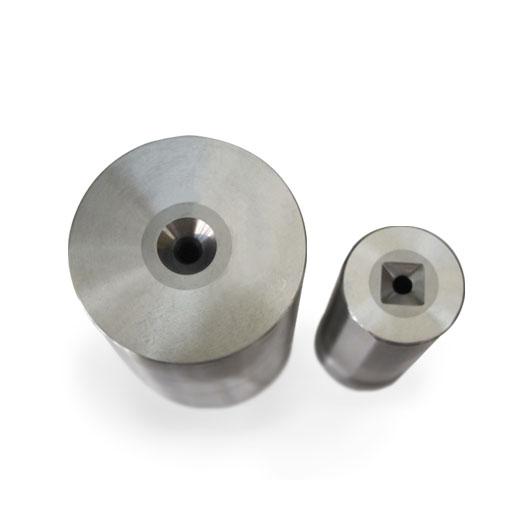

Micro screw making dies are precision tools that work with punches to shape small wire blanks into screw heads and bodies during cold heading.GXP supplies custom micro screw forming dies, punches and related tooling.
Micro Screw Making Dies & Punches
GXP supplies custom tooling for micro screw production, including heading dies, recess punches, cutting tools and thread rolling dies.
Individual replacement tools and complete tooling sets can be reviewed according to your drawings and machine requirements.
Main Functions
- Cut the wire: Cut-off dies and knives prepare blanks for forming.
- Form the screw blank: Heading dies and punches shape the head and body.
- Create the drive recess: Recess punches form the specified drive profile.
- Eject the blank: Knockout pins remove the formed blank from the die.
- Form external threads: Thread rolling dies produce the required thread profile.
Materials for Micro Screw Tooling
| Material | Main Features and Uses |
|---|---|
| Tungsten Carbide | High wear resistance for heading die inserts and selected forming components. |
| Tool Steel | A balance of toughness and wear resistance for selected dies, cutting tools and supporting components. |
| High-Speed Steel | Used for selected punches and forming tools requiring strength and wear resistance. |
| Alloy Steel | Provides structural support for die cases and holders. |
The material grade and heat treatment should match the wire material, tool geometry and forming conditions. Available specifications are confirmed during technical review.

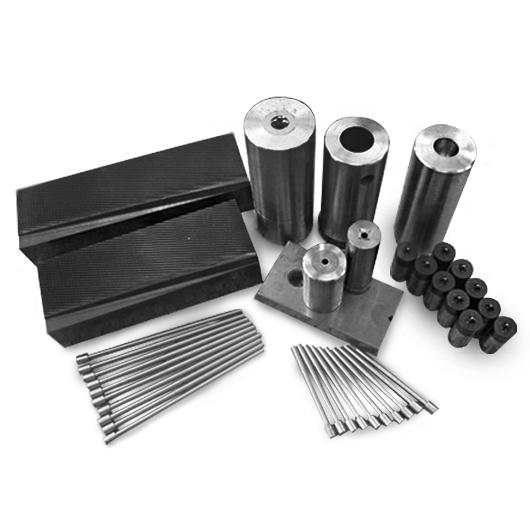

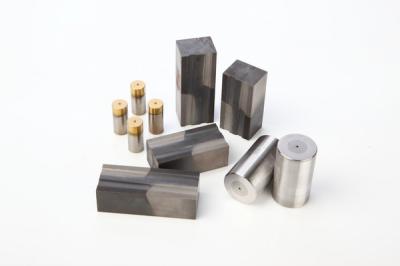

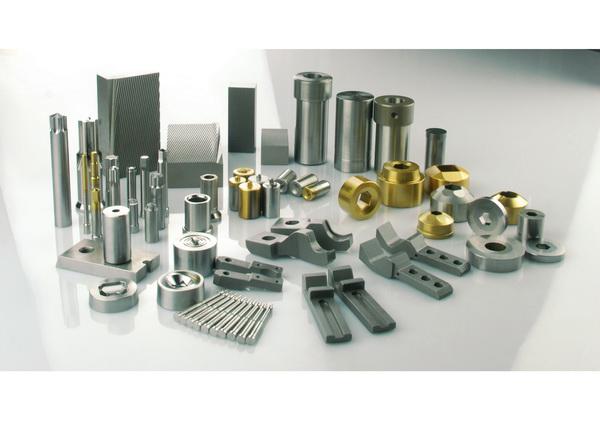

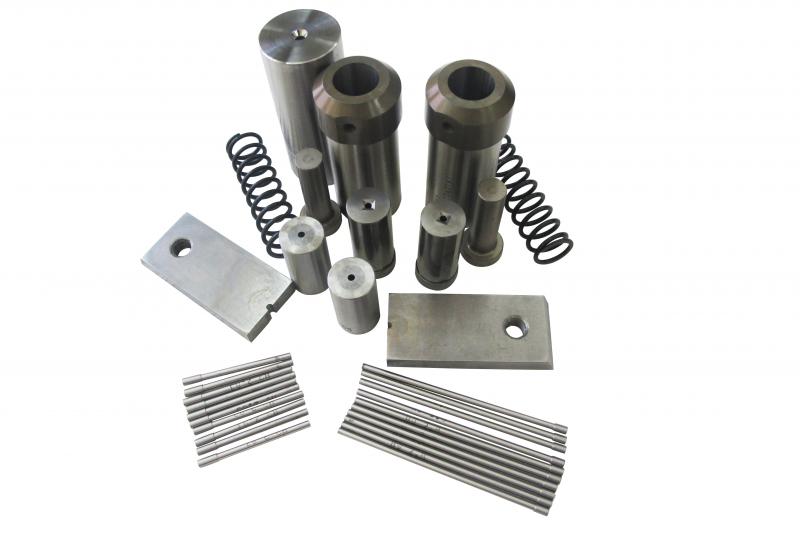

Tooling Options for Micro Screw Production

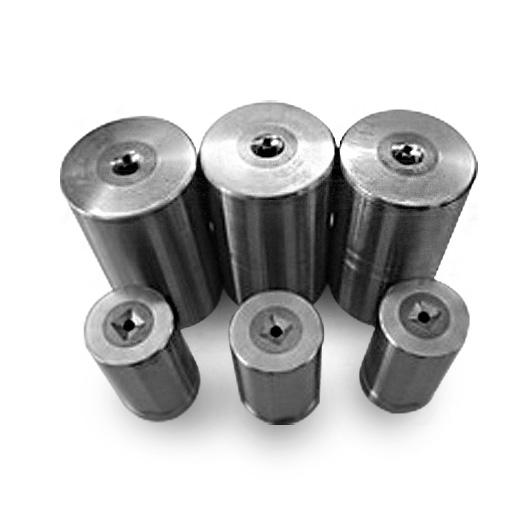

- Carbide heading dies and knockout pins.
- First punch dies and pins.
- First and second punch cases.
- Header punches, recess punches and second punches.
- First punch springs and retainers.
- Cut-off dies and knives.
- Wire feed rollers.
- Thread rolling dies.
Product Applications
Micro screw forming dies and punches are used to manufacture miniature fasteners for:
| Product Category | Typical Applications |
|---|---|
| Consumer Electronics | Smartphones, tablets, laptops and wearable devices. |
| Watches and Eyewear | Watch components, eyeglass frames and hinges. |
| Optical Equipment | Cameras, lens assemblies and optical instruments. |
| Electronic Components | Connectors, sensors and small electronic modules. |
| Precision Machinery | Miniature motors, measuring instruments and small mechanical assemblies. |
Tooling suitability depends on the screw design, required tolerances and production process.
Custom Tooling Based on Your Drawings
For quotation and technical review, please provide:
- Screw drawing with dimensions and critical tolerances.
- Wire material and diameter.
- Head style and recess design.
- Machine model and tooling dimensions.
- Required tooling items and quantities.
GXP can review individual replacement tools or complete tooling requirements based on this information.
Frequently Asked Questions
What is a micro screw making die?
It is a precision tool that supports and shapes a small wire blank during cold heading. It works with punches to produce the required screw geometry.
What tooling is available for micro screw production?
Tooling options include heading dies, punches, knockout pins, punch cases, springs, retainers, cutting tools, feed rollers and thread rolling dies.
What materials are used?
Common materials include tungsten carbide, tool steel, high-speed steel and alloy steel. Selection depends on the tool’s function and production conditions.
Can I request a complete tooling set?
Yes. GXP can review complete tooling requirements as well as individual replacement items. Please specify the tools required for each production stage.
Can tooling be customized for my machine?
Tooling can be reviewed according to your machine specifications and drawings. Mounting dimensions and compatibility must be confirmed before production.
Are thread rolling dies included with heading tooling?
Please specify whether your inquiry covers heading tools, thread rolling dies or both. These tools perform different operations and should be listed separately.
What information is needed for a quotation?
Send your screw and tooling drawings, wire specifications, machine information, critical tolerances and required quantities.
Request a Micro Screw Tooling Quotation
Send your drawings and production requirements to GXP for tooling review and a customized quotation.
