Segmental wafer dies combine thin forming inserts with a segmented tooling design for specific cold heading applications.
Customized segmental dies are made to match the required part profile, forming sequence and machine dimensions. The wafer’s position and function are defined by the tooling assembly drawing.
Segmental Wafer Dies & Customized Segmental Dies
What Is a Segmental Wafer Die?

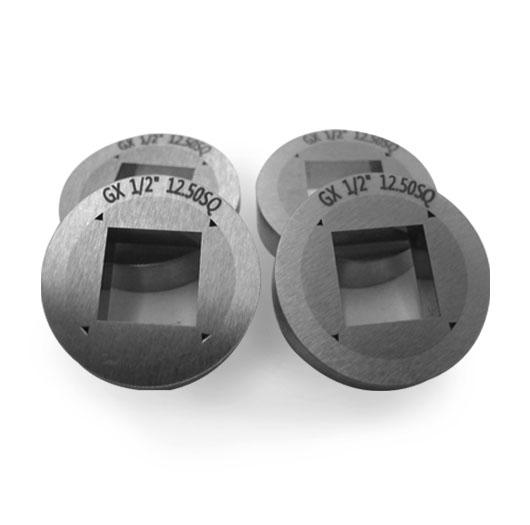

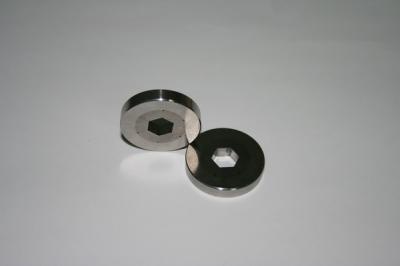

A segmental wafer die is a forming die assembly that incorporates thin, wafer-type working components in a segmented construction.
In fastener tooling, “wafer” refers to a thin tooling insert. Its working profile forms or supports a specific area of the metal blank.
Main functions:
-
Form the specified local profile.
-
Support material flow during heading.
-
Control critical dimensions at the working area.
-
Provide a wear-resistant forming surface.
What Is a Customized Segmental Die?

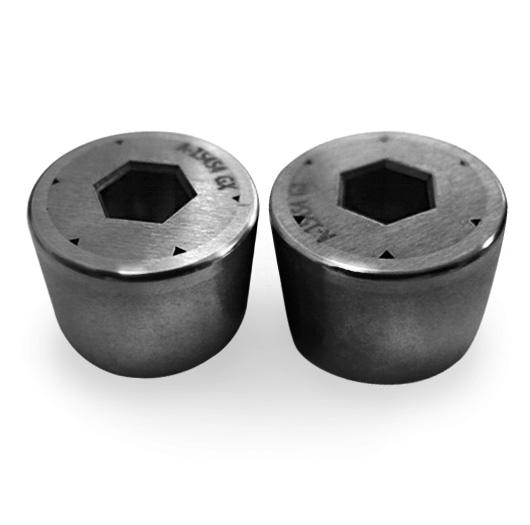

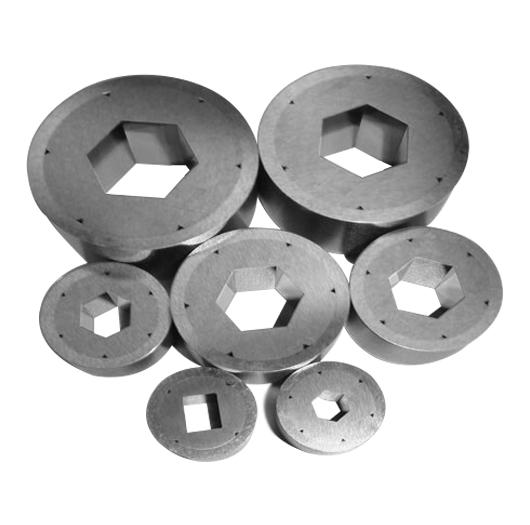

A customized segmental die uses multiple working segments to create a drawing-specific forming cavity.
The segment arrangement, wafer thickness and supporting components are selected according to the application.
Main functions:
-
Form special fastener profiles.
-
Support the workpiece under forming pressure.
-
Fit the required machine and tooling assembly.
-
Accommodate application-specific cavity designs.
Materials and Construction
| Component | Typical Material | Function |
|---|---|---|
| Working wafers or segments | Cemented tungsten carbide, commonly with a cobalt binder | Provides wear resistance and compressive strength |
| Case and supporting components | Heat-treated alloy steel or tool steel | Positions and supports the working inserts |
Carbide grade selection depends on wire material, forming load and insert geometry. Thin components require suitable backing, accurate fit and proper alignment.
Custom Tooling Options
-
Wafer thickness and outside dimensions.
-
Working bores and forming profiles.
-
Segment quantity and arrangement.
-
Case and backing dimensions.
-
Drawing-defined tolerances and surface finishes.
Typical applications include screw and bolt forming, local profile forming and special cold-formed components.
Information Required for a Quote
Please provide:
-
Finished-part and tooling assembly drawings.
-
Wafer dimensions and working profile.
-
Wire material and diameter.
-
Machine model and die case dimensions.
-
Forming stage, tolerances and reference samples.
FAQ
What does “wafer” mean in this product?
It refers to a thin forming insert used within a die assembly.
How does it differ from a standard segmental die?
A wafer-type design incorporates thin working components. Other segmental dies may use longer segments to form a larger portion of the cavity.
Why use tungsten carbide?
Tungsten carbide provides high wear resistance and compressive strength, helping maintain the working profile during repeated forming.
Can individual wafers or segments be replaced?
Replacement may be possible if the design permits it. Matching accuracy, supporting surfaces and case condition must be inspected first.
Does the die open during production?
Not necessarily. Segment movement depends on the assembly design; many segmented inserts remain fixed in the case.
Can the tooling be customized?
Yes. Wafer dimensions, working profiles, segment arrangements and material grades can be reviewed according to your drawings.
Request a Quote
Send your part and assembly drawings for a review of the wafer design, material and supporting structure.
