Hexagon Phillips Indented Type Pin Punch
GXP Click here
Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies precision Hexagon Phillips Indented Type Pin Punches for screw head and recess forming.
These punches are designed to form specialized Phillips recess profiles with hexagonal and indented features during cold heading.
JD handles design and manufacturing in Taiwan, while GXP manages sales, specifications and quotations.
Standard and customized designs can be reviewed according to screw specifications, tooling requirements and customer drawings.
Hexagon Phillips Indented Type Pin Punch for Screw Recess Forming
What is a Hexagon Phillips Indented Type Pin Punch?

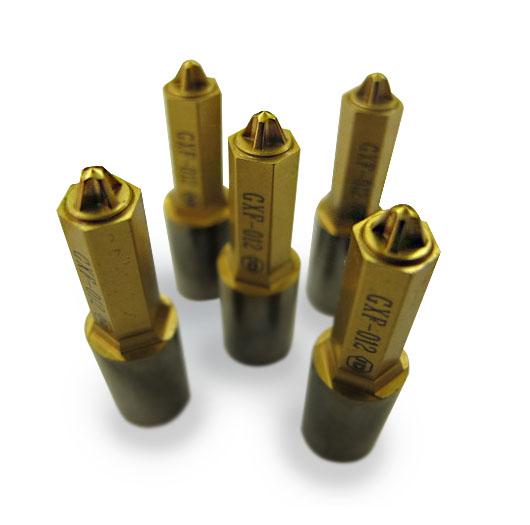

A Hexagon Phillips Indented Type Pin Punch is a precision forming tool used to produce a specialized screw drive recess combining Phillips-type geometry with hexagonal and indented features.
Main Functions:
-
Forms specialized screw drive recess profiles.
-
Maintains consistent recess dimensions and geometry.
-
Supports stable screw head forming during cold heading.
-
Fits compatible header punch assemblies.
-
Supports customized recess designs according to customer drawings.
Materials & Surface Treatment
Material selection depends on screw material, recess geometry and production conditions.
|
Item |
Available Options |
|---|---|
|
Carbon Steel |
M2 / SKH-9 |
|
Stainless Steel |
M42 / SKH-59 |
|
Surface Treatment |
Plain, TiN or TiAlN, subject to confirmation |
|
Custom Design |
According to customer drawings |
Final material and coating specifications are subject to JD's technical review.
Applications & Specifications
|
Item |
Description |
|---|---|
|
Application |
Screw head and recess forming |
|
Recess Profile |
Hexagon Phillips Indented Type |
|
Production Process |
Cold heading |
|
Compatible Tooling |
Suitable header punch assemblies |
|
Screw Standards |
ISO, JIS, ANSI, DIN or customer drawings, where applicable |
|
Dimensions |
According to screw specifications and drawings |
|
Customization |
Available upon technical review |
Ordering Information
Please provide the following information when requesting a quotation:
-
Screw Standard: ISO, JIS, ANSI, DIN or customer drawing.
-
Screw Size: Diameter, length and head type.
-
Recess Profile: Hexagon Phillips Indented Type, with drawing or sample.
-
Pin Dimensions: Diameter, overall length and required tolerances.
-
Material & Coating: Required tool steel and surface treatment.
-
Header Punch Assembly: Applicable punch case or assembly dimensions.
-
Order Quantity: Required quantity for quotation.
Customer drawings or physical samples are recommended to confirm special recess geometry and tooling compatibility.
Manufactured by JD in Taiwan | Sales & Quotations by GXP
Frequently Asked Questions
What is a Hexagon Phillips Indented Type Pin Punch?
It is a precision forming tool used to produce Phillips recesses with indented hexagon head features during screw cold heading.
What is the difference between a Recess Pin Punch and a Header Punch?
A recess pin punch is a forming component used in a compatible punch assembly. A header punch is the complete tool used to form the screw head and recess.
Who manufactures these pin punches?
JD designs and manufactures them in Taiwan. GXP coordinates sales, specifications and quotations.
What materials are available?
M2 (SKH-9) and M42 (SKH-59) high-speed steel options can be reviewed according to screw material and production requirements.
Are custom dimensions available?
Yes. Custom pin dimensions and recess profiles can be reviewed based on customer drawings or samples.
Are surface coatings available?
Plain, TiN and TiAlN options can be reviewed according to forming conditions and JD's technical confirmation.
What information is required for ordering?
Please provide screw dimensions, head style, recess drawing, pin dimensions, screw material, coating requirements and order quantity.
Can these punches be used for stainless steel screws?
Yes, subject to technical review. M42 may be considered for stainless steel screw forming, depending on the material grade and production conditions.
Request a Quote – JD Hexagon Phillips Indented Type Pin Punch
Looking for precision pin punches for hexagon head screws with Phillips recesses?
GXP supplies JD-manufactured recess pin punches from Taiwan, including custom designs for screw cold heading applications.
Send us your drawings, pin dimensions and required quantity for specification review and quotation.
