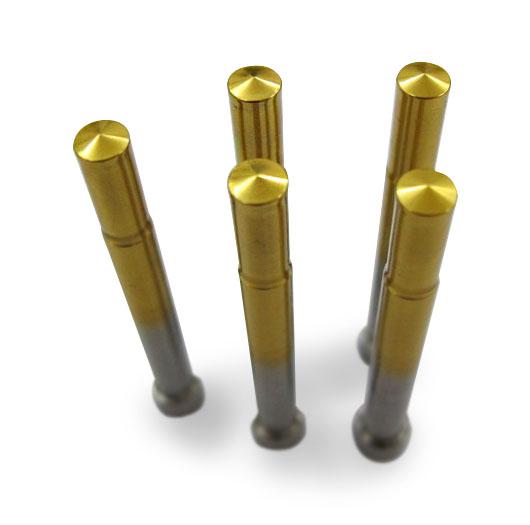

Extrusion Punches
GXP Click here
Geng Xin Precision Co., Ltd., also known as GXP Co., Ltd., supplies custom extrusion punches for cold forming and fastener production. Working profiles, mounting dimensions and tolerances follow approved drawings and forming requirements.
Definition and Function
An extrusion punch applies compressive force to a metal blank, causing material to flow through or around the tooling to create the required shape.
Depending on the tooling arrangement, extrusion can produce reduced sections, hollow features or stepped profiles. The punch works with the mating die to control material flow and component geometry.
Punch design must suit the extrusion direction, reduction ratio and forming sequence.
Materials and Surface Treatments
| Item | Available Options |
|---|---|
| Materials | SKH-9, M2, SKH-55, M42, SKH-59 and ASP-30 |
| Surface treatments | Uncoated, TiN, TiAlN or customized treatment |
| Custom specifications | Subject to drawing and application review |
Material and coating selection should consider forming pressure, workpiece properties, lubrication and wear conditions.
Ordering Information
Please provide:
-
Punch drawing with dimensions, tolerances, radii and surface finish requirements.
-
Working length, shank diameter and mounting details.
-
Workpiece drawings before and after extrusion.
-
Workpiece material, hardness and lubrication method.
-
Machine model, station number and extrusion direction.
-
Mating die details, required punch material, coating and quantity.
Minimum order quantity: 10 pieces.
Reference lead time: 20-25 working days after order confirmation, subject to specification review.
Packaging: Plastic bags.
FAQ
1. Can extrusion punches be customized?
Yes. Submit detailed tool and workpiece drawings for specification review and quotation.
2. What is the difference between extrusion and piercing?
Extrusion reshapes material through controlled flow. Piercing removes material to create an opening.
3. What are forward and backward extrusion?
In forward extrusion, material flows in the punch travel direction. In backward extrusion, material flows in the opposite direction, around the punch.
4. Which material and coating should I choose?
Selection depends on forming pressure, workpiece material and the required balance of toughness and wear resistance.
5. What information helps review premature tool failure?
Provide the failed tool, wear or fracture photos, production conditions and mating die drawings.
6. Can I order a replacement punch?
Yes. Provide the existing drawing, machine details and quantity. Confirm the drawing revision before ordering.
Request a Quote
Send your extrusion punch drawing, workpiece specifications and required quantity to GXP for review and quotation.
