Customized Cold Forging Punch

GXP Click here

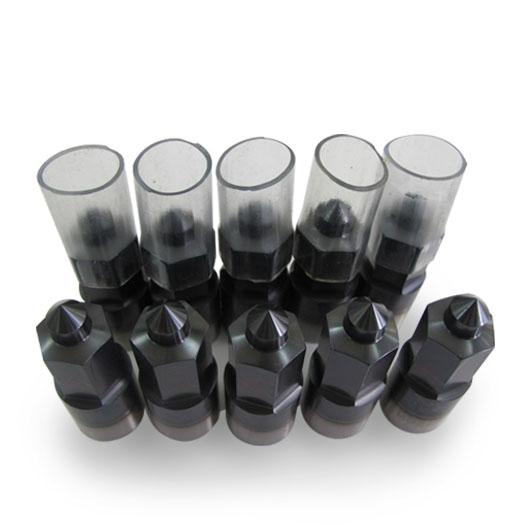

GXP supplies customized cold forging punches made to customer drawings and forming requirements. These tools apply pressure to metal blanks to produce the required shape during cold forming. Punch geometry is designed for the specific forming station, component dimensions and machine setup. Applications include screw, bolt, nut and custom metal part production.

Functions and Applications

Depending on the design, cold forging punches can be used for:

  • Heading: Forming screw or bolt heads.

  • Preforming: Preparing the blank for subsequent forming stages.

  • Extrusion: Directing metal flow to form specified features.

  • Piercing: Producing holes or openings in suitable forming operations.

  • Profile forming: Creating round, hexagonal, twelve-point or custom shapes.

Each punch must be matched to its intended operation and supporting tooling.

Materials and Surface Treatments

Item Available Options
High-speed steel SKH-9 / M2, SKH-55, M42, SKH-59
Powder metallurgy high-speed steel ASP-30
Surface treatment Uncoated, TiN, TiAlN or custom treatment subject to review

Material and coating selection depends on the workpiece material, punch geometry, forming load and wear conditions. Final specifications are confirmed during technical review.

Information Required for Quotation

Please provide:

  1. Punch drawing: Dimensions, tolerances, working profile and overall length.

  2. Finished part drawing: Component dimensions and forming requirements.

  3. Workpiece material: Steel grade, wire diameter and hardness, if available.

  4. Machine details: Manufacturer, model, forming station and mounting dimensions.

  5. Tool specifications: Required material, hardness and surface treatment, if specified.

  6. Order requirements: Quantity and requested delivery date.

For replacement tooling, please also provide existing punch drawings or samples and describe any wear, chipping or breakage issues.

FAQ

1. What is a customized cold forging punch?

It is a forming tool manufactured to a specific drawing to shape a metal blank during a cold forging operation.

2. How does a punch work with a die?

The punch applies force to the blank, while the die supports and controls its outer shape. Their geometry and alignment must work together.

3. Can punches be supplied for multi-station forming machines?

Yes. Please provide the machine details, station number and relevant tool and component drawings for review.

4. Which material should I choose?

Selection depends on the balance of wear resistance and toughness required. Provide your workpiece material and production conditions so suitable options can be reviewed.

5. Are coated punches available?

TiN and TiAlN are available options. Coating suitability depends on the tool material, forming operation and operating conditions.

6. Can you review an existing punch that wears or breaks?

Yes. Please provide drawings, photos of the damaged area, workpiece details and approximate tool life to support the review.

7. What are the minimum order quantity and lead time?

MOQ and lead time are confirmed with the quotation according to the punch design, material, coating and order quantity.

Request a Quotation

Send your punch drawing, finished part specifications and machine details to GXP for a technical review and quotation.
