Thread Rolling Dies for Custom Wood Screws with 12 Teeth

GXP Click here

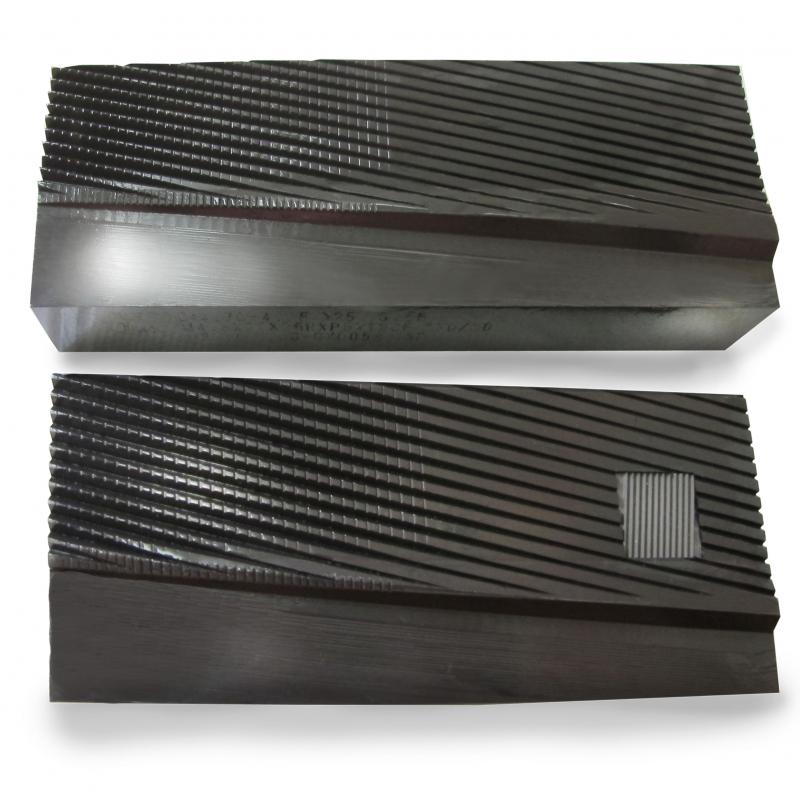

GXP supplies flat thread rolling dies for custom wood screws with a specified 12-tooth design. Each matched set includes one stationary die and one moving die. Custom specifications can be reviewed according to detailed screw drawings and machine requirements.

Definition and Functions

These dies are forming tools used to produce external threads on wood screw blanks with a custom 12-tooth configuration. Pressure between the die plates displaces the blank material to form the required thread profile.

Main functions:

  • Form the specified thread diameter, pitch and profile.
  • Control threaded length and thread runout.
  • Accommodate the required 12-tooth feature, subject to tooling review.
  • Match die dimensions to the selected rolling machine.

The website does not define the location, geometry or function of the 12 teeth. Confirm these details on the screw drawing, including whether the teeth are formed during rolling or in a separate operation.

Die Materials

The GXP product page lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel  for carbon steel  used
DC-53 Cold-work tool steel  for carbon steel  used
SKH-9 High-speed tool steel for stainless steel used
M2 High-speed tool steel for stainless steel used

Material selection should consider blank material, hardness, tooth geometry and production conditions. Confirm the exact grade, heat treatment and any surface treatment during quotation.

Ordering Information

Item Required Information
Screw dimensions Major diameter, overall length, head style and head dimensions
Thread specifications Pitch, thread angle, root diameter, profile and tolerances
12-tooth geometry Location, spacing, width, depth, tooth angle and inspection requirements
Threaded length Full or partial thread, unthreaded shank length and runout
Point design Point angle, length, tip geometry and thread coverage
Blank specifications Material grade, hardness, dimensions and condition before rolling
Machine and dies Machine manufacturer, model, dimensions of both die plates and mounting details
Purchase requirements Drawing revision, quantity in matched sets, acceptance criteria and requested delivery date

FAQ

1. What are these dies used for?
They form external threads on custom wood screw blanks specified with a 12-tooth feature.

2. What does “12 teeth” mean?
It identifies the product’s custom tooth configuration. The tooth location, shape and dimensions must be confirmed by a drawing or sample.

3. Do the teeth reduce driving torque or wood splitting?
Performance depends on the tooth design, screw geometry and wood material. Any required benefit should be verified through application testing.

4. Can the threads and teeth be formed in one operation?
This requires a feasibility review of the starting blank, finished geometry and machine capability.

5. Which materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Each set contains one stationary die and one moving die.

6. Can the dies fit my existing machine?
Provide the machine manufacturer, model and dimensions of both existing die plates, including mounting details.

7. What should be checked during trial production?
Inspect thread dimensions, tooth count, tooth geometry, feature position and point shape. Check for incomplete forming, laps and burrs. Include driving and withdrawal tests where required.

Request a Quotation

Send GXP your wood screw drawing, detailed 12-tooth specifications, blank information and machine details for technical review and quotation.
