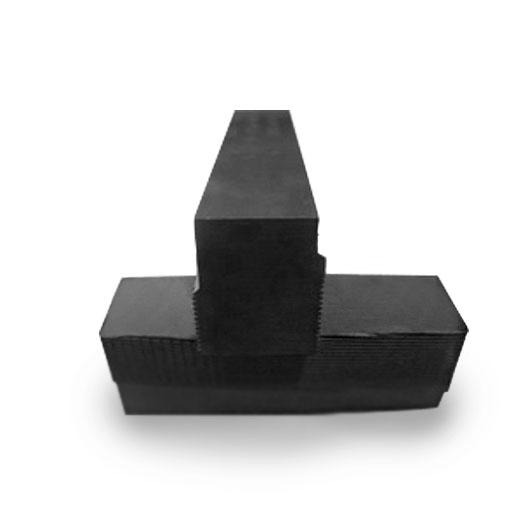

Thread Rolling Dies for Taptite Screws - Type C

GXP Click here

GXP supplies flat thread rolling dies for the product designated on its website as “taptite screw C type.” Each matched set contains one stationary die and one moving die. Custom specifications are available for review based on detailed drawings and machine requirements

Definition and Functions

Type C taptite screw thread rolling dies are forming tools used to produce the specified external thread profile on screw blanks. The dies apply pressure to displace material and form threads.

Main functions:

  • Form the required thread diameter, pitch and profile.
  • Control threaded length and thread runout.
  • Accommodate the specified screw cross-section, subject to tooling review.
  • Support repeatable production with consistent blanks and correct machine settings.

The website does not define the exact Type C geometry. Confirm the cross-section, thread profile and point design against the approved screw drawing.

Die Materials

GXP lists the following material options.

Material Material Type
SKD-11 Cold-work tool steel  for carbon steel used
DC-53 Cold-work tool steel  for carbon steel used
SKH-9 High-speed tool steel  for stainless steel used
M2 High-speed tool steel  for stainless steel used

Select the material according to blank material, hardness, forming requirements and production conditions. Confirm heat treatment and any surface treatment during quotation.

Ordering Information

Item Required Information
Screw drawing Complete dimensions, tolerances and drawing revision
Thread specifications Diameter, pitch, thread angle, profile and threaded length
Cross-section Required shape and inspection dimensions
Point design Point dimensions, taper and lead-in geometry
Blank specifications Material grade, hardness before rolling, shape and dimensions
Head dimensions Head style, diameter and height
Machine information Machine manufacturer, model and mounting details
Die dimensions Length, height and thickness of both dies
Purchase requirements Quantity in matched sets, inspection requirements and requested delivery date

FAQ

1. What are these dies used for?
They form external screw threads according to the approved Type C screw drawing.

2. Does “Type C” fully define the screw geometry?
No. Provide a detailed drawing or applicable specification to confirm the thread, cross-section and point geometry.

3. Can the dies form a lobular screw profile?
Submit the required cross-section and tolerances for feasibility review. The tooling configuration must be confirmed before ordering.

4. Which die materials are available?
GXP lists SKD-11, DC-53, SKH-9 and M2. Material suitability depends on production requirements.

5. How many dies are included in one set?
One stationary die and one moving die.

6. Can the dies fit my existing rolling machine?
Provide the machine manufacturer, model and dimensions of both existing die plates for compatibility review.

7. What should be inspected during trial production?
Check thread dimensions, cross-section, threaded length, point geometry and surface condition. Include installation and stripping torque tests where required by the application.

Request a Quotation

Send GXP your Type C screw drawing, blank specifications and machine details for technical review and quotation.
